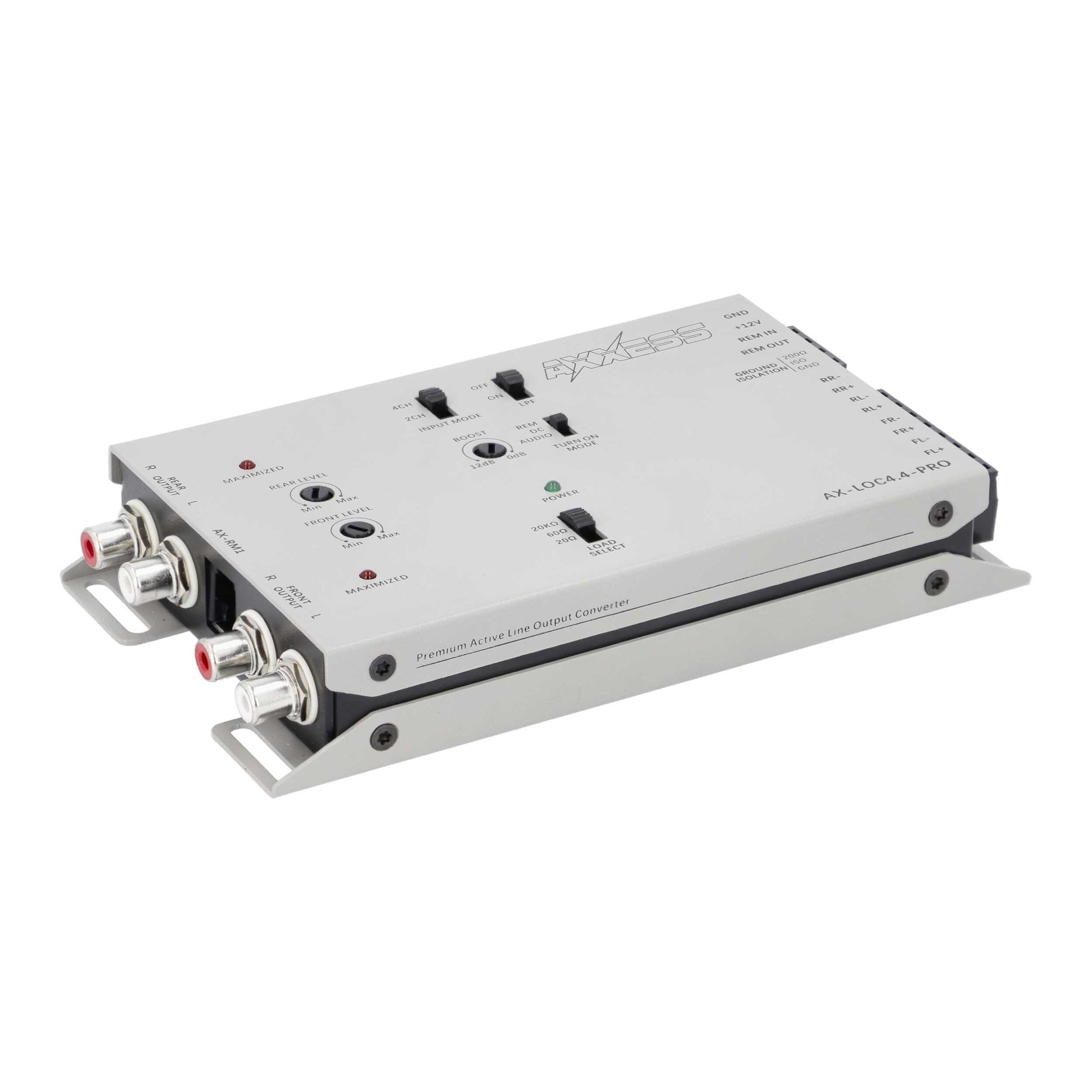

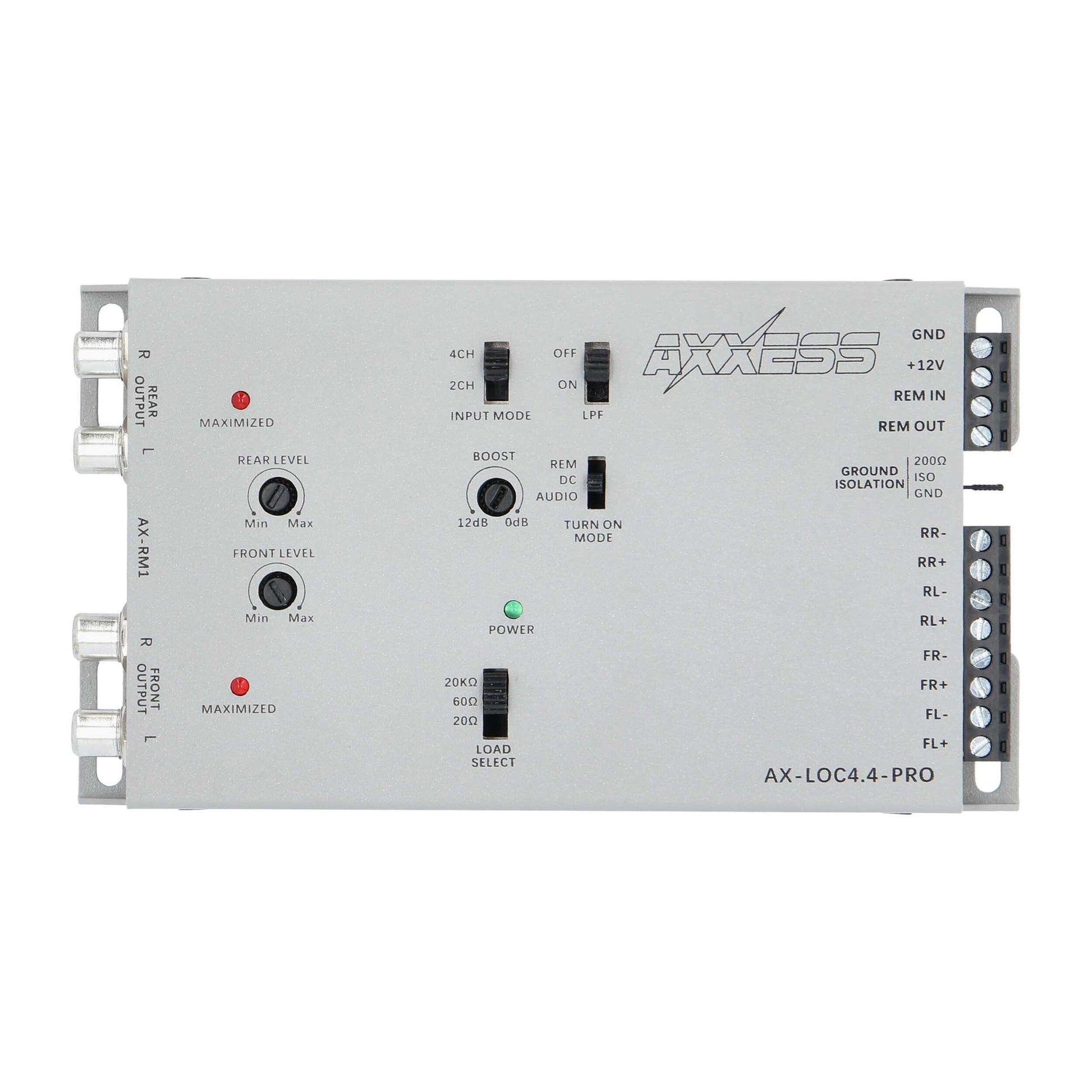

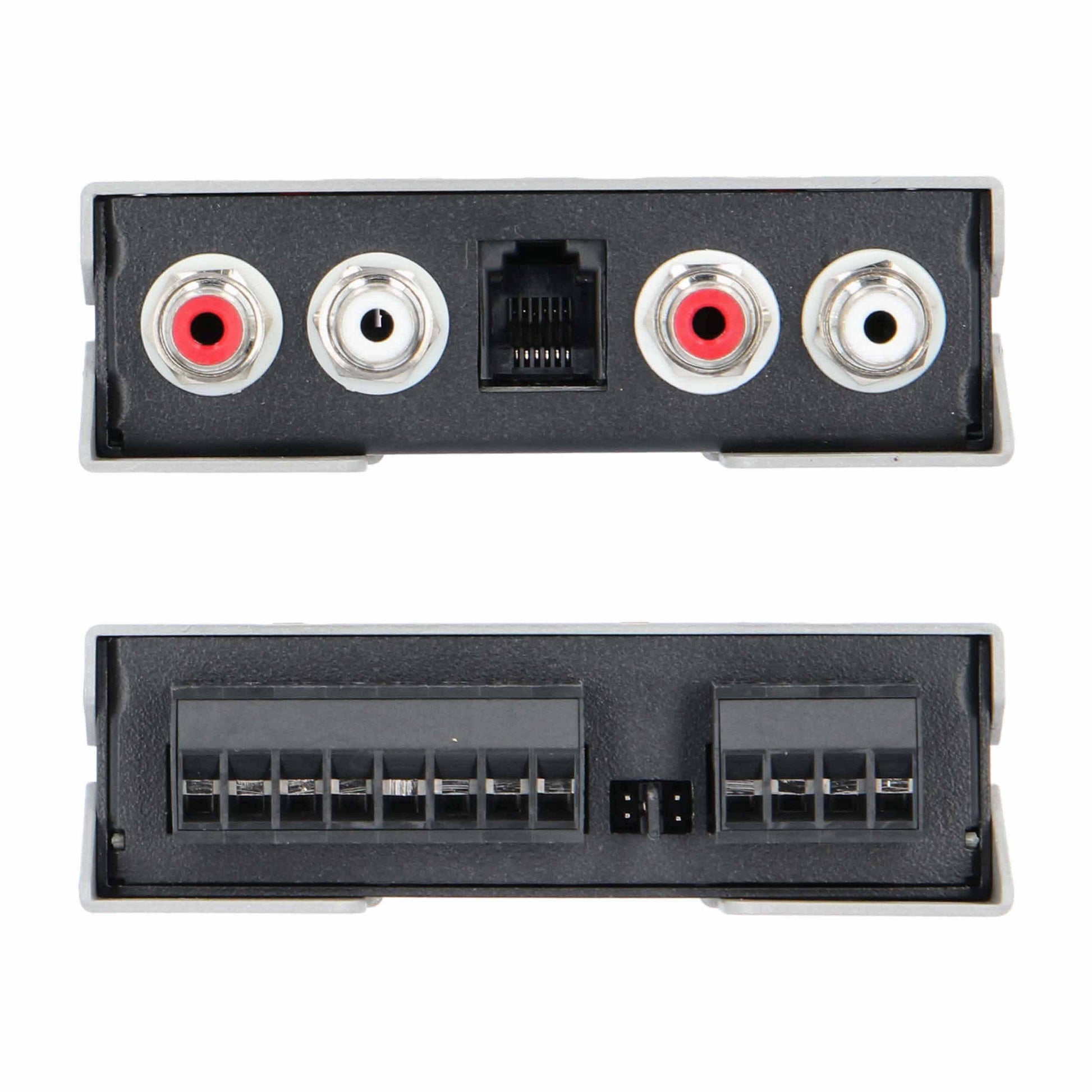

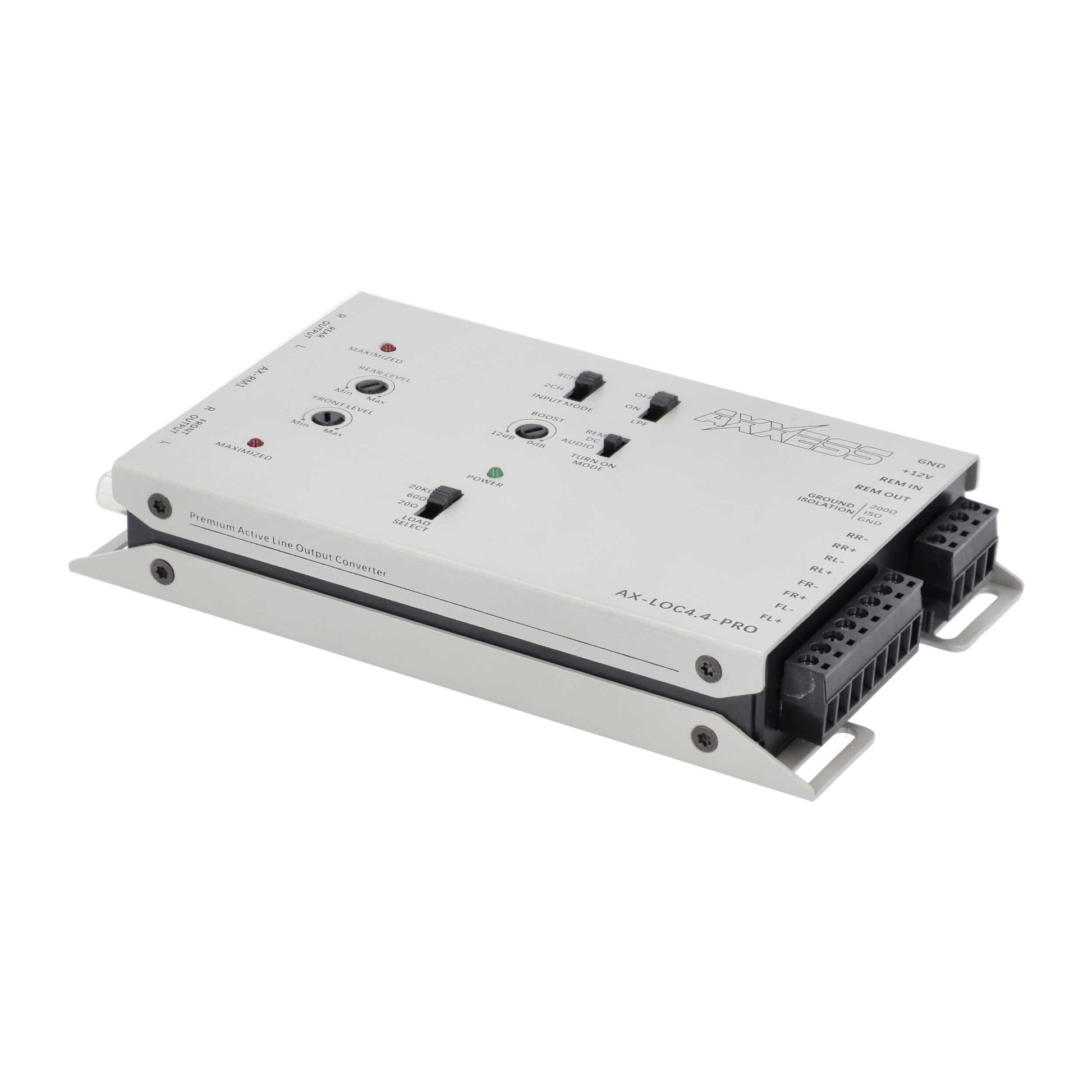

Metra AX-LOC4.4-PRO | 4CH Active Line Output Converter with Bass Boost

Features

• 4-channel: 4 in, 4 out
• Line driver
• Max input level: 40V / 400W @20K Ohm
• Operating voltage: 9V-16V
• Trigger selection: REM / DC / AUDIO
• Remote Output Rating 500mA
• Turn on trigger (DC): 3V-7V
• Output max @13.8V: 9.5V RMS
• Input impedance selection: 20 / 60 / 20k Ohm
• Ground selection: GND / ISO / 200 Ohm
• Independent Front/Rear Gain adjustment: – 28dB to +1dB
• Input sensitivity: 0.5V-20V
• Signal to noise: >110dB @6.4V output
• THD+N (Total Harmonic Distortion): <0.01%
• Frequency response: 20Hz-20kHz
• Low pass filter: <250Hz (rear channels)
• Bass Boost: 0dB + 12dB (rear channels)
• Remote control: optional AX-RM1
